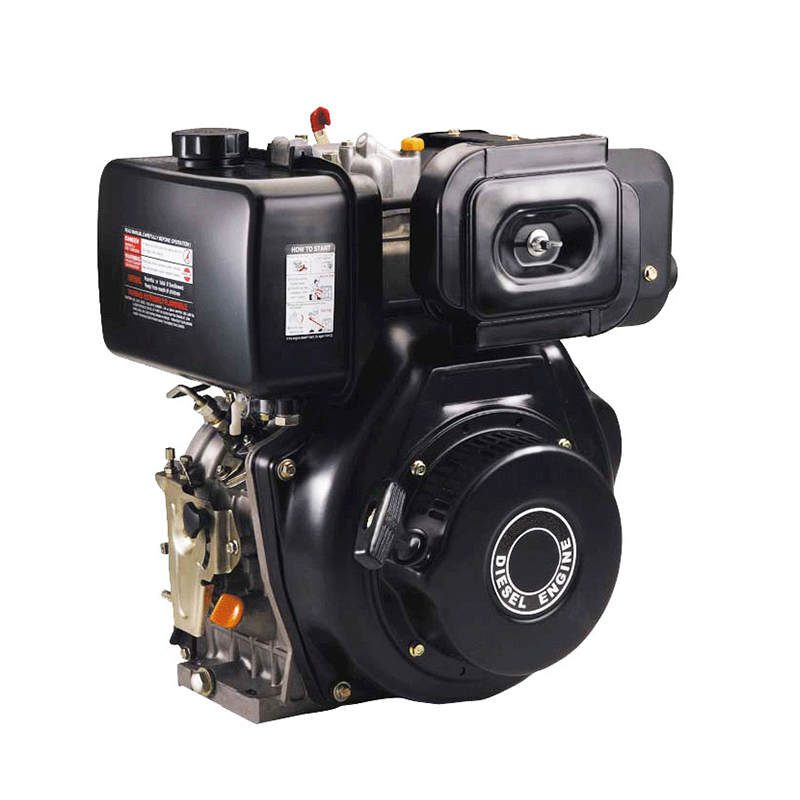

KD170F
More simple, reliable and technological
Based on years of production and sales experience, the core concept of KNOXGEN is to solve power problems for clients with advanced technology. In the perspective of users, the products of KNOXGEN are characterized by low fuel consumption and low maintenance cost. KNOXGEN engines comply with the latest emissions regulations through our original advanced diesel engine technologies.
Features & benefits
Advanced noise reduction design
The efficient muffler reduces the exhaust noise significantly. Large air filters minimize intake noise. The engine noise is further reduced by the high strength cylinder block, cylinder head cover and the reasonable timing structure of intake and exhaust valves.
Perfect injection technology
KNOXGEN independently developed precise injection system, ensure efficient fuel injection. High precision injection pump and direct injection system make fuel consumption reach the ideal level. Good air intake and sufficient combustion make its emission lower to meet EPA standard.
Unique transmission system
The new generation of KNOXGEN portable diesel engine adopts well-designed gear transmission mechanism, which can greatly reduce vibration and noise.
| Diesel Engine | KD170F | |
| Type | Single-cylinder, vertical, air-cooled, four-stroke, direct injection | |
| Bore× Stroke | mm | 70×55 |
| Displacement | L | 0.211 |
| Compression ratio | 20 | |
| Rated power/Rated speed | kW/r/min | 2.5/3000 2.8/3600 |
| The lowest speed at zero load | r/min | _x005f≤1300 |
| Lubricating system | Pressure splashed | |
| Starting system | Recoil starter or Electric starter | |
| Rotation direction (face to the output axle) | Anticlockwise | |
| Fuel tank capacity | L | 2.5 |
| Fuel consumption | (g/kW.h)/r/min | 280.23000 288.3/3600 |
| Lube oil type | CD grade or SAE 10W-30, 15W-40 | |
| Lube oil capacity | L | 0.75 |
| Starting Motor Capacity | V, Kw | 12V 0.8kW |
| Charging Generator Capacity | V, A | 12V 3A |
| Accumulator Capacity | V, Ah | 12V 24Ah-36Ah |
| Overall dimension(L×W×H) | mm | 335×380×415 |
| Dry weight | kg | ≤27 |
