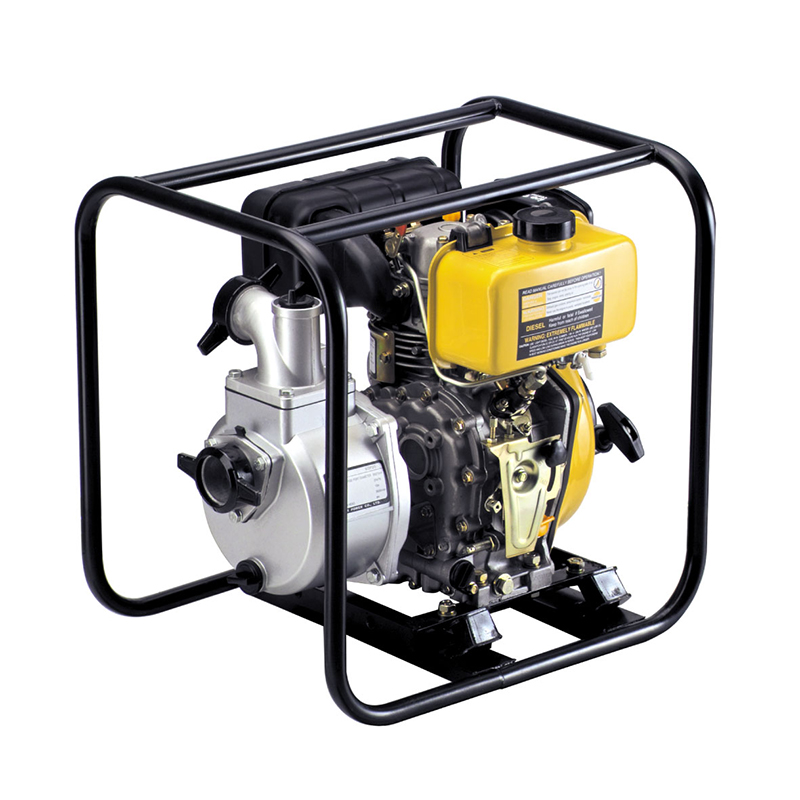

KDP30
KDP30
KNOXGEN offers many different pump models for a wide variety of applications in agriculture, industry, residence, commerce and rental etc. From our clean water pumps to sewage pumps, each of our water pumps offers outstanding performance.
Legendary KNOXGEN engines as the heart of pumps are easily started and provide sufficient and stable power for any time.
You chase after unparalleled water pumps? KNOXGEN pumps are exactly what you want.
Features & benefits
Economical Running
Equipped with KNOXGEN engines, KNOXGEN pumps assure superior combus-tions efficiency and minimized fuel consumption.
Portability
Adopted special alloy frame, largely reduced the weight and assures simple use.
A Wide Range
Excellent and advanced impeller ensures water supply in a wide range.
Durable Construction
The principal parts of each pump are reinforced for superior wear resistance and corrosion resistance.
Easy Maintenance
Cleaning the inside casing can be done simply by just removing a few bolts.
| Model | KDP30 | ||
| Type | Diesel pump | ||
| Water inlet pipe nominal diameter | mm | 80(3") | |
| Water outlet pipe nominal diameter | mm | 80(3") | |
| Rated capacity | m3/h | 72 | |
| Rated total head | m | 25 | |
| Max. suction head | m | 8 | |
| Self-priming time | s/4m | 90 | |
| Rotation speed | r/min | 3600 | |
| Engine | Engine model | KD178F | |
| type | Single cylinder, four-stroke, direct injection, air cooled | ||
| Bore×stroke | mm | 78x62 | |
| Displacement | cm3 | 296 | |
| Max. power | KW/(r/min) | 4/3600 | |
| Cooling system | Air cooled | ||
| Fuel type | 0#(summer), -10#(winter), -35#(chillness) diesel | ||
| Starter system | Recoil starter | ||
| Noise (zero load to full load) | dB(A)/1m | 76 | |
| Net weight | kg | 60 | |
| Gross weight | kg | 72 | |
| Overall dimension (L x W x H) | mm | 675x445x575 | |
