KL11T
KL11T

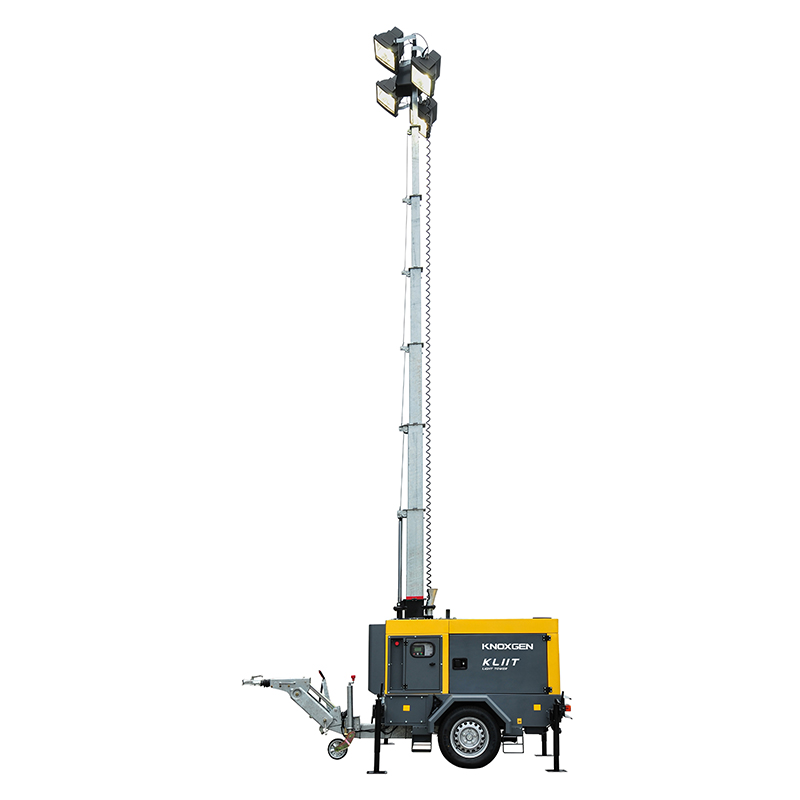

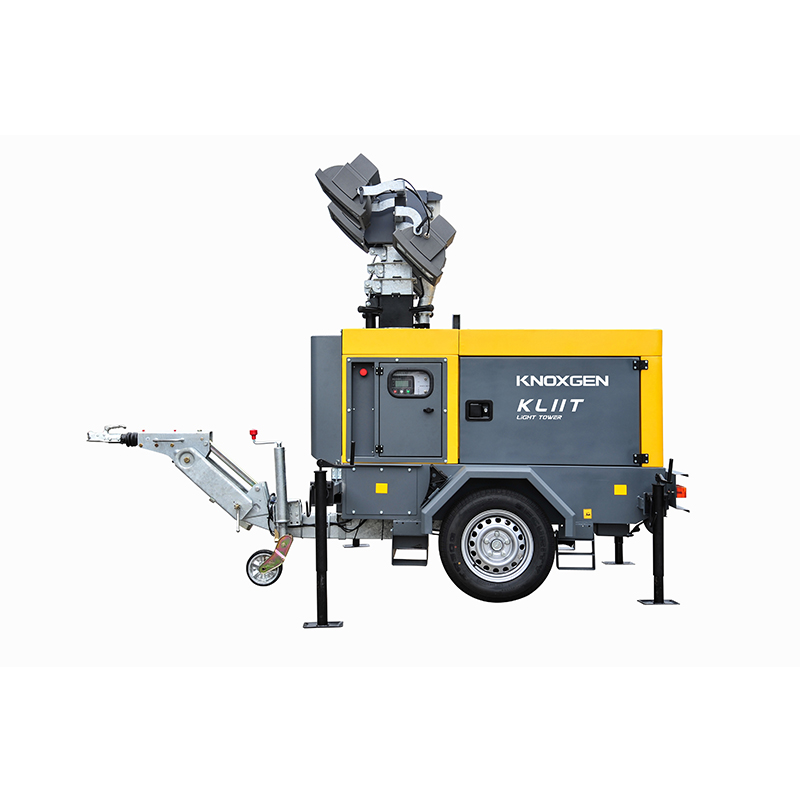

The KL11T gives out an impressive amount of bright light in a compact frame. The lighttower is your flexible choice for dark conditions because it is easy to transport and move around on job sites. It is robust and reliable which also has several innovative features, making it safe and easy to use.
Features & benefits
Simple Controls
Its easy-to-use controller comes with a weekly timer to schedule up to eight lighting events. Key features include a start up sequence that avoids overloading the alternator, parameter display (AMPs, voltage, frequency, fuel levels, etc.), an event log, an emergency stop and an optional remote start.
Reliable & Safe
The controller allows you to start the four lamps one by one to help avoid the risk of failure of the alternator excitation system. In addition, Pulse & Pause Ballast technology prevents filament damage and extends the lifetime of the lamp. As the control panel is outside the main cubicle, you don’t have to contact with the engine to start operation.
Best Source of Light
The KL11T needs less power to produce more light. Metal halide lamps are one of the most efficient ways of turning electrical energy into light currently available on the market. A 98-liter fuel tank ensures 42 hours of uninterrupted operation (with only the lamps on) which helps to save time.
Quick Installation
It takes only seconds to extend the KL11T’s mast to its maximum height of 6.7m and to rotate it 340°.The windproof ability ≤ 6. It has four stabilizers to make it safer.
Simplified Maintenance
The large service doors of KL11T provide quick access to components on both sides, including the alternator, hydraulic system, engine and electrical components. Easy to reach the drains for water and oil. An external filling point makes it faster for refueling.
Robust & Environmental Friendly
The KL11T is tougher than the others because it has a heavy-duty galvanized steel canopy, a powerful KIPOR engine and a professional alternator. The polyester powder paint coating makes it can operate for 720 hours in salt spray tests. The frame of KL11T can prevent fuel from spilling out.
Easy to Move
Different types of trailer, including off-road non-homologated and on-road homologated are available to fit a wide range of applications.
Floodlight model | KL11T | ||
Lamp power -No. | W | 100-4 | |
Total power of the lamps | W | 4000 | |
Luminuous flux | lm | 360000 | |
Structure | Eight stages lifting mast | ||
Lifting limit of the mast | 6700 | ||
Dimensions(after retreating) | 3000x1300x2300 | ||
Inclination | ≤ 10 degrees | ||
Windproof ability | ≤ 6 grade | ||
Genset | |||
Rated frequency | Hz | 50 | 60 |
Rated power | kVA | 8.5 | 10.5 |
Max. power | kVA | 9.5 | 11.5 |
Rated voltage | V | 230 | 240 |
Rated current | A | 37 | 43.8 |
Engine model | KD388G | ||
Fuel type | Diesel | ||
Fuel consumption rate | L·h | 3.7 | |
Fuel tank capacity | h | 98 | |
Continuous running time | h | 42 |
