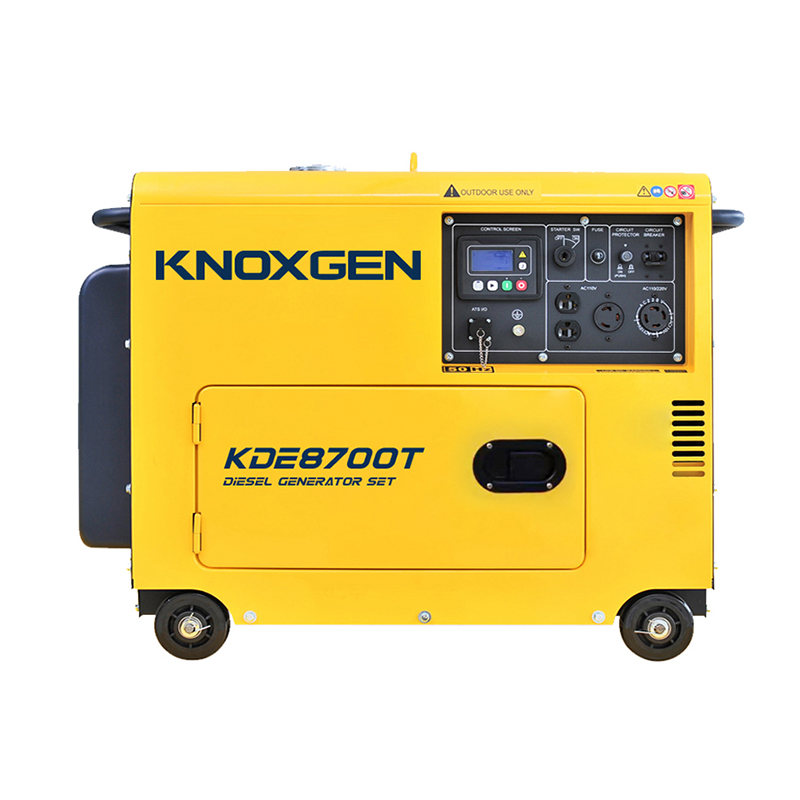

KDE8700T
KNOXGEN is the best choice in portable power, we has the right generator to meet your portable power needs.
Outstanding serviceability and reliable performance in a simple, easy-to-use design make KNOXGEN generators the best choice in portable power.
Compared with traditional models, KNOXGEN general gensets have been greatly improved by technical breakthrough and innovation, which are featured by impressive noise reduction, easy transportation, higher power, easy maintenance, and so on.
Stronger Power
KNOXGEN’s newly-developed single engine can be introduced with excellent low speed torque to the structure of gensets, not adding the overall dimension of the gensets.
Robust and Durable
Compact, robust and resilient structures ensure long unit life and quiet operation. Thicker paint treatments resist the wear and tear caused by extreme environmental conditions.
Convenient Maintenance
AVR, air filter and fuel filter are all designed with individual access panels, so that component replacement can be done without dismounting the genset cabinet.
Noise Reduction
A high efficiency combustion system ensures complete combustion. A large silencer dampens exhaust noise and engine sounds are contained in a double-walled structure and absorbed by a special liner.
Easily Portable
A compact design makes it easy to fit into tight confines and still provided optimum performance.
| Unit model | KDE8700T | ||||
| GENERATOR SET | Rated frequency | Hz | 50 | 60 | |
| Rated power | kVA | 6 | 6.6 | ||
| Max. power | kVA | 6.6 | 7.3 | ||
| Rated voltage | V | 115/230 | 120/240 | ||
| Rated current | A | 52/26 | 55/27.5 | ||
| Rated rotation speed | r/min | 3000 | 3600 | ||
| GENERATOR | Generator model | KT8 | |||
| Pole No. | 2 | ||||
| Phase number | Single phase | ||||
| Excitation mode | Self-exciation and constant voltage(with AVR)） | ||||
| Power factor | cosΦ | 1.0 | |||
| Insulation grade | F | ||||
| ENGINE | Engine model | KD192FGET | |||
| Structure type | Single-cylinder, vertical, 4-stroke, air-cooled, direct-injected | ||||
| Bore x stroke | mm | 92×75 | |||
| Displacement | mL | 499 | |||
| Compression ratio | 19:1 | ||||
| Rated power | kW | 7.6 | 8.6 | ||
| Lubrication system | Pressure splashed | ||||
| Lube oil brand | Above CD or SAE 10W-30, 15W-40 | ||||
| Lube capacity | L | 1.65 | |||
| Starting system | 12V Electric starter | ||||
| Fuel type | Diesel : 0# (summer), -10# (winter), -35# (chillness) | ||||
| GENSET | Panel type | General panel/Smart Control | |||
| Noise（7m） | d(B)/A | 72 | |||
| Fuel capacity | L | 15 | |||
| Overall dimensions | mm | 980×530×740 | |||
| Net weight | kg | 175 | |||
