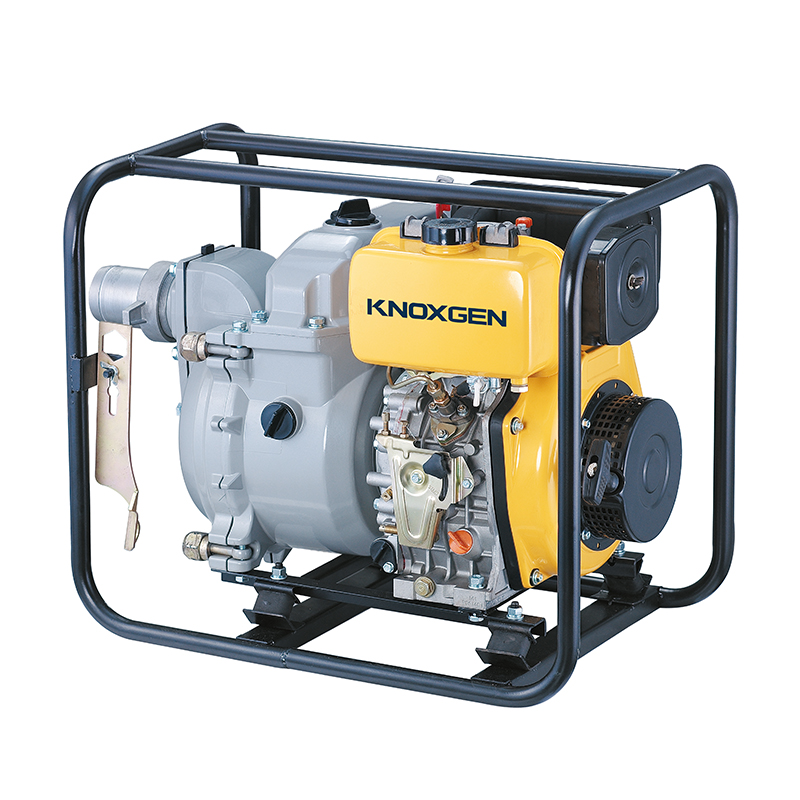

KDP20T
KDP20T
For those applications where large solids and debris are encountered, KNOXGEN offers a line of trash pumps designed to meet the infiltration of such debris. Deep impeller vanes and a large volute discharge opening can pass suspended sticks, stones and debris without clogging the pump or harming its components. Designed to be user-friendly, these self-priming pumps remain durable under the harshest conditions.
Features & benefits
Reliability
Our technology absolutely sets the standard for reliability. That's precisely why many working professionals greatly prefer KNOXGEN's equipment. There's virtually no downtime and they last longer than you can even imagine.
Fuel Efficient and Quiet
The fact that our engines are exceptionally fuel efficient and quiet are two more attributes. On the job site, this counts for a lot.
Easy to Start
KNOXGEN is also easy to start and easy to use. Our sewage pump engines are perfectly matched and KNOXGEN engineered for quality and precision.
Full Frame Protection
Rugged full frame and minimize the vibration.
| Model | KX20PT | ||
| Type | Diesel pump | ||
| Water inlet pipe nominal diameter | mm | 50(2") | |
| Water outlet pipe nominal diameter | mm | 50(2") | |
| Rated capacity | m3/h | 42 | |
| Rated total head | m | 26 | |
| Max. suction head | m | 8 | |
| Self-priming time | s/4m | 60 | |
| Rotation speed | r/min | 3600 | |
| Engine | Engine model | KD170F | |
| type | Single cylinder, four-stroke, direct injection, air cooled | ||
| Bore×stroke | mm | 70x55 | |
| Displacement | cm3 | 211 | |
| Max. power | KW/(r/min) | 2.8/3600 | |
| Cooling system | Air cooled | ||
| Fuel type | 0#(summer), -10#(winter), -35#(chillness) diesel | ||
| Starter system | Recoil starter | ||
| Noise (zero load to full load) | dB(A)/1m | 74 | |
| Net weight | kg | 48 | |
| Gross weight | kg | 58 | |
| Overall dimension (L x W x H) | mm | 655x435x565 | |
