Residential Generator

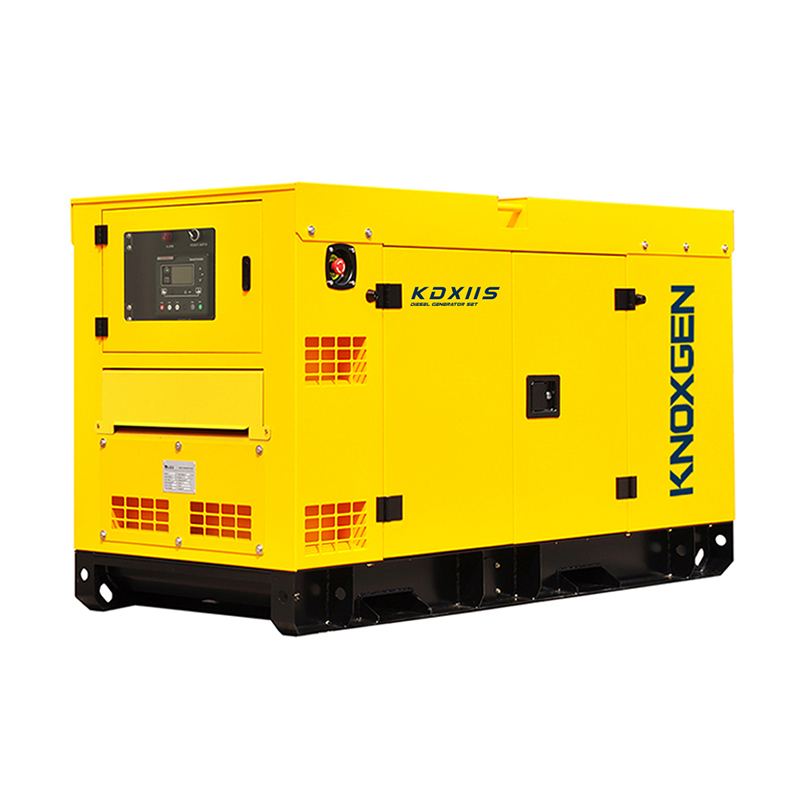

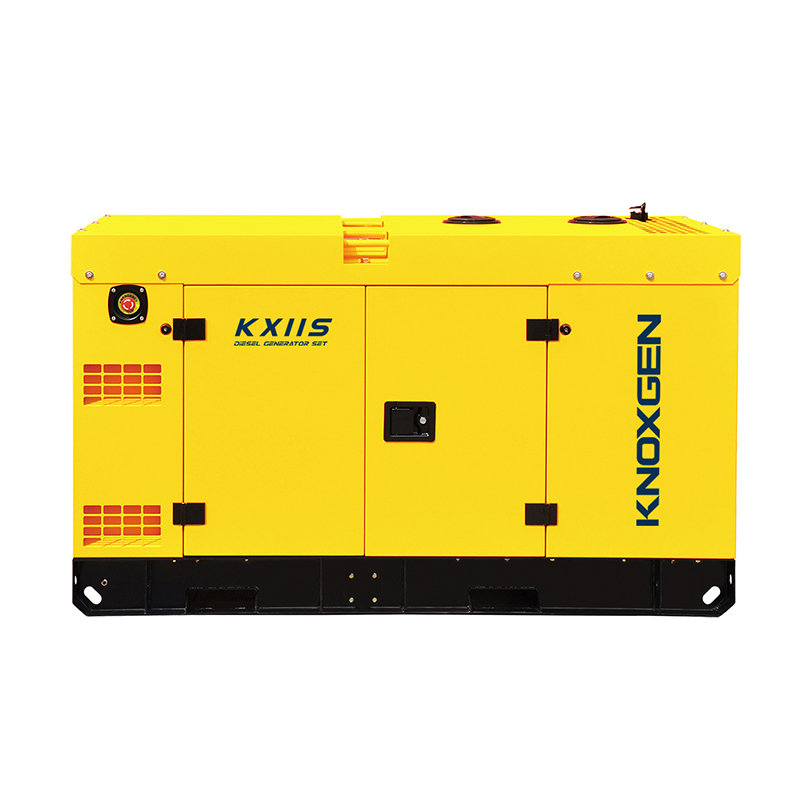

KNOXGEN KDX Series Diesel generators are powered by KNOXGEN brand diesel engine which covers genset power range from 10kVA to 88kVA.
These KNOXGEN engines continue the legacy of durability, reliability, maximum fuel efficiency, and low emissions. It can be easily started in low temperature and has good performance in economy and power.
More powerful performance
KNOXGEN exclusive technology provides greater motor starting capability for large loads such as central air conditioners while still running other home appliances and electronics.
Cleaner, safer and quieter
KNOXGEN KDX generators meet or exceed relevant standards for noise and emissions regulations.
Robust and durable
Compact, robust and resilient structures ensure long unit life and quiet operation. Thicker paint treatments resist the wear and tear caused by extreme environmental conditions.
Easy to use
The control panel is simple and easy to operate. Built in monitoring of the unit’s performance provides a high level of information on the generator’s status.
Designed to be easily transported
A compact design makes it easy to fit into tight confines and still provide optimum performance
Easier service
Large service doors provide easy access to preventive maintenance and service checks.
Genset Model | Prime Power | Standby Power | Engine | Alternator | Control System | Fuel cons 75%(L/H) | Dimension(mm) | ||||
KW | KVA | KW | KVA | Brand | Model | Knoxgen | Open type | Soundproof type | |||
KDX11S | 8 | 10 | 8.8 | 11 | Knox | K385D | L1L1D-B4 | Standard: 6120 auto control system | 1.8 | 1550*800*1030 | 2000*850*1150 |
KDX14S | 10 | 12.5 | 11 | 13.8 | KNC485BD | L1L1D-C4 | 2.3 | 1550*800*1030 | 2000*850*1150 | ||
KDX17S | 12 | 15 | 13.2 | 16.5 | KNC485BD | L1L1D-D4 | 2.7 | 1550*800*1030 | 2000*850*1150 | ||
KDX22S | 16 | 20 | 17.6 | 22 | KC490BD | L1L1D-E4 | 3.2 | 1550*800*1030 | 2000*850*1150 | ||
KDX28S | 20 | 25 | 22 | 27.5 | KA495BD | L1L1D-F4 | 3.9 | 1600*800*1060 | 2000*850*1150 | ||
KDX33S | 24 | 30 | 26.4 | 33 | KA498BD | L1L1D-G4 | 4.5 | 1600*800*1060 | 2000*850*1150 | ||
KDX41S | 30 | 37.5 | 33 | 41.3 | KA498BZD | L1L1D-H4 | 5.7 | 1700*800*1210 | 2280*900*1250 | ||
KDX55S | 40 | 50 | 44 | 55 | K4D35ZD | L2L1D-B4 | 7.5 | 1700*800*1210 | 2280*900*1250 | ||
KDX69S | 50 | 62.5 | 55 | 68.8 | KA4K41ZD | L2L1D-C4 | 9.6 | 1700*800*1210 | 2280*900*1250 | ||
KDX88S | 64 | 80 | 70.4 | 88 | KA4K41KD31 | L2L1D-E4 | 12.4 | 2000*800*1450 | 3000*1050*1650 |
Genset Model | Prime Power | Standby Power | Engine | Alternator | Control System | Fuel cons 75%(L/H) | Dimension(mm) | ||||
KW | KVA | KW | KVA | Brand | Model | Knoxgen | Open type | Soundproof type | |||

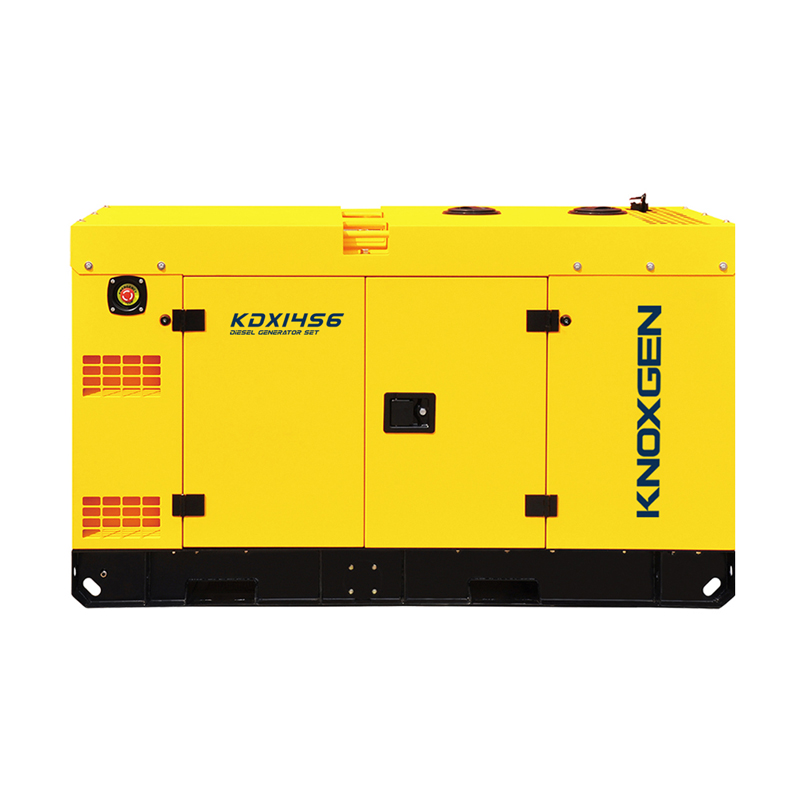

KDX14S6 | 10 | 12.5 | 11 | 13.8 | Knox | K3B11XD51 | L1L1D-B4 | Standard: 6120 auto control system | 1.9 | 1550*800*1030 | 2000*850*1150 |
KDX22S6 | 16 | 20 | 17.6 | 22 | KNC485BD | L1L1D-D4 | 3.1 | 1550*800*1030 | 2000*850*1150 | ||
KDX28S6 | 20 | 25 | 22 | 27.5 | KC490BD | L1L1D-E4 | 3.9 | 1550*800*1030 | 2000*850*1150 | ||
KDX33S6 | 24 | 30 | 26.4 | 33 | KA495BD | L1L1D-F4 | 4.7 | 1600*800*1060 | 2000*850*1150 | ||
KDX41S6 | 30 | 37.5 | 33 | 41.3 | KA498BD | L1L1D-G4 | 5.8 | 1600*800*1060 | 2000*850*1150 | ||
KDX50S6 | 36 | 45 | 40 | 50 | KA498BZD | L1L1D-H4 | 7.0 | 1700*800*1210 | 2280*900*1250 | ||
KDX69S6 | 50 | 62.5 | 55 | 68.8 | K4D35ZD | L2L1D-B4 | 9.7 | 1700*800*1210 | 2280*900*1250 | ||
KDX77S6 | 56 | 70 | 61.6 | 77 | KA4K41ZD | L2L1D-C4 | 10.9 | 1700*800*1210 | 2280*900*1250 | ||
KDX99S6 | 72 | 90 | 79.2 | 99 | KA4K41KD31 | L2L1D-E4 | 14.0 | 2000*800*1450 | 3000*1050*1650 |
