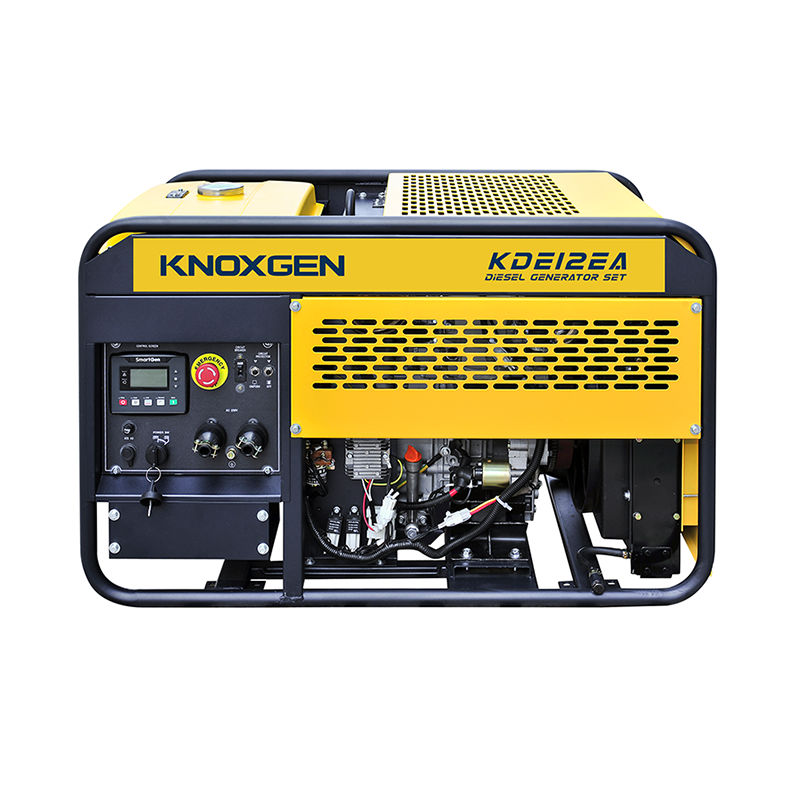

KDE12EA

简介:


KNOXGEN is the best choice in portable power, we has the right generator to meet your portable power needs.
Outstanding serviceability and reliable performance in a simple, easy-to-use design make KNOXGEN generators the best choice in portable power.
Compared with traditional models, KNOXGEN general gensets have been greatly improved by technical breakthrough and innovation, which are featured by impressive noise reduction, easy transportation, higher power, easy maintenance, and so on.

功能和优势

规格

TAGS

KNOXGEN is the best choice in portable power, we has the right generator to meet your portable power needs.
Outstanding serviceability and reliable performance in a simple, easy-to-use design make KNOXGEN generators the best choice in portable power.
Compared with traditional models, KNOXGEN general gensets have been greatly improved by technical breakthrough and innovation, which are featured by impressive noise reduction, easy transportation, higher power, easy maintenance, and so on.

Stronger Power

KNOXGEN’s newly-developed single engine can be introduced with excellent low speed torque to the structure of gensets, not adding the overall dimension of the gensets.

Robust and Durable

Compact, robust and resilient structures ensure long unit life and quiet operation. Thicker paint treatments resist the wear and tear caused by extreme environmental conditions.

Convenient Maintenance

AVR, air filter and fuel filter are all designed with individual access panels, so that component replacement can be done without dismounting the genset cabinet.

Noise Reduction

A high efficiency combustion system ensures complete combustion. A large silencer dampens exhaust noise and engine sounds are contained in a double-walled structure and absorbed by a special liner.

Easily Portable

A compact design makes it easy to fit into tight confines and still provided optimum performance.




  • 上一个: KDE12STA
  • 下一个: KDE10000TA3

  • Unit modelKDE12EA
    GENERATOR SETRated frequencyHz5060
    Rated powerkVA8.59
    Max. powerkVA9.510
    Rated voltageV115/230120/240
    Rated currentA73.9/3775/37.5
    Rated rotation speedr/min30003600
    GENERATORGenerator model
    KT12
    Pole No.
    2
    Phase number
    Singel phase
    Excitation mode
    Self-exciation and constant voltage(with AVR))
    Power factorcosΦ1.0
    Insulation grade
    F
    ENGINEEngine model
    KD2V80G
    Structure type
    V type double
    cylinder, 4-stroke,
    swirl chamber,water-cooled
    Bore x strokemm80×79
    DisplacementmL794
    Compression ratio
    23:1
    Rated powerkW12.514.5
    Lubrication system
    Pressure splashed
    Lube oil brand
    Above CD or SAE 10W-30, 15W-40
    Lube capacityL2.27
    Starting system
    12V Electric starter
    Fuel type
    Diesel : 0# (summer), -10# (winter), -35# (chillness)
    GENSETPanel type
    Smart Control
    Noise(7m)d(B)/A85
    Fuel capacityL25
    Overall dimensionsmm1030×600×650
    Net weightkg210
